产品介绍：
汽水分离器/STEAM-WATER SEPARATOR
优点：
汽水分离器利用体内几何图形和蒸汽与水流动的原理产生不同流向，将蒸汽和蒸汽中水滴分离，提高蒸汽干燥度，保证生产的运行。1、提高蒸汽干燥度，保证用汽设备的使用温度，提高设备的热效率。
2、在用汽设备前端，分离冷凝水防止水击现象产生。
3、使用于各种气体和液体的分离。
Merits
Gas-water separators separate steam and drip in the steam on the basis of inner geometrical figure and principle of different flowing of steam and water,so as to increase steam dryness to assure operation.
1.Improvement of steam dryness,assurance of using temperature of steam using equipment,and improvement of heat efficiency of the equipment.
2.Separation of condensate in front of steam using equipment to prevent water hammer.
3.Adoptable for separation of separation of various kinds of gases and liquids.
汽水分离器/STEAM-WATER SEPARATOR
技术参数/Technique parameter
|
产品型号 Product model |
技术参数/Technique parameter |
|||
|
阀体材料 Valve body materials |
PMA（Mpa） |
最高允许温度（℃） Maximum allowable temperature |
适用介质 Used medium |
|
|
GS3 GS1、GS7 GS13 |
铸铁 Cast-iron 碳钢 Carbon steel 碳钢 Carbon steel |
1.6 1.6 2.5 |
220 420 420 |
蒸汽、气体、凝结 水Steam、Gas、Condensate water 蒸汽、气体、凝结水 Steam、Gas、Condensate water 蒸汽、气体、凝结水 Steam、Gas、Condensate water |
主要零件材料/The materials of primary accessories
零部件名称
Part and component name
材质
Material
阀体、阀盖
Valve body、Valve cover
铸铁、碳钢
Cast-iron、Carbon steel
滤罩
Filtration cover
不锈钢
Stainless steel

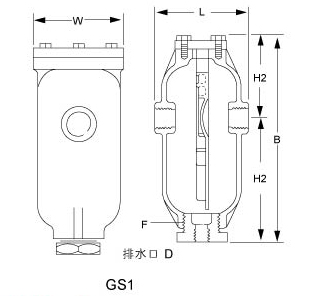

外形尺寸和重量/Prime out-form dimensions and weigh
|
产品型号 Product model |
口径(DN) Calibre |
L法兰 Flange |
L螺纹/ 焊接 Thread/ welding |
H1 |
H2 |
D（排口） Vent |
使用压力 范围(MPa) Pressure change range |
公称压力 (MPa) Nominal pressure |
|
GS1 |
15-25 |
210 |
135 |
115 |
145 |
丝口 |
0.1-2.5 |
2.5 |
注解：
1、提供连接尺寸和法兰标准。2、正确安装、清除阀内杂质。
Note
1.To offer joining size and flange standard.
2.To assure proper installation and clean out impurities inside.
