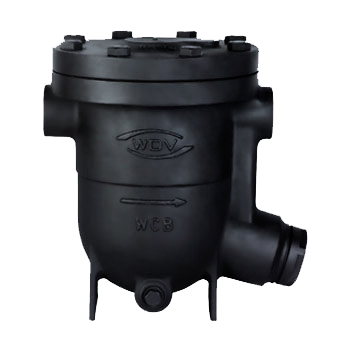

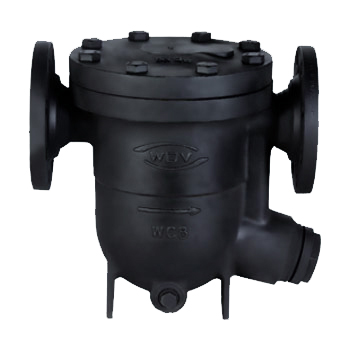

自由浮球式疏水阀-11N

产品介绍:

利用高精度研磨不锈钢空心浮球在阀腔内随着凝结水的液位变化开启或关闭阀门。该疏水阀的结构比较简单,主要由浮球和自动排空装置组成。阀腔内的动作元件——不锈钢空心浮球,采用高精度研磨工艺制造,整个球面均可做密封面,工作时无集中磨损,使用寿命长 ; 阀腔内无易损件,可靠性高。浮球能根据水位变化而自由调节阀孔的开度,能够连续排放凝结水,过冷度≈0℃,工作效率高。

自动排空装置分为两种 :(低压PN25以内)液囊热敏元件组成和(过热蒸汽系统)双金属片组成。

Free-ball float trap

The drain valve is opened or closed by taking advantage of the change of liquid level of condensate water with the high-precision grinding stainless steel hollow float ball in the valve cavity. This steam trap has a simple structure, mainly consisting of float balls and automatic emptying devices. The sole action elements, namely, the stainless steel hollow float ball is manufactured by high-precision grinding process, and its entire sphere can serve as the sealing face and will not be worn intensively during the work, so it has a longer service life. In addition, there is no wearing part in the valve cavity, with a high reliability. The float ball can freely adjust the openness of the valve opening in response to the change of water level and discharge the condensate water continuously with a subcooled temperature of about 0℃ and higher efficiency.
The automatic emptying devices fall into two types : (within low pressure PN25) consisting of reservoir thermo-sensitive elements and (overheated steam system) consisting of bimetals.

优点:

1、转动的是高精度研磨的不锈钢浮球,抗腐蚀。
2、结构简单,维修方便。
3、不受压力波动的影响,连续排水,噪声小。
4、装有自动排空装置,能够迅速排除空气,防止气堵和汽锁。
5、体积小,排量大。
6、有水就排,能够加快系统启动速度。

Merits

1. The sole moving component is the high-precision grinding stainless float ball, which can resist erosion.
2. Its simple structure is convenient for maintenance.
3. To drain continuously with low noise, without being affected by the fluctuation of the pressure.
4. To be equipped with automatic emptying devices and it can eliminate air quickly and prevent air blocking and steam locking.
5. Small volume and large displacement.
6. To drain whenever there is water left over so as to quicken the startup speed of the system.

主要零件材料/The materials of primary accessories

零部件名称Part and component name

材质Material

阀体、阀盖Valve bodyvalve cover

铸铁、铸钢、不锈钢Cast ironCast steelStainless steel

自由浮球Free float ball

304/316不锈钢304/316 Stainless steel

阀座Valve seat

高铬不锈钢High chrome stainless steel

自动排空气装置Automatic air exhaust

不锈钢、热敏元件Stainless steelThermo-sensitive element

过滤网、罩Filtrating screenCover

不锈钢Stainless steel


不锈钢球直径/Diameter of stainless bal

材质/Material

A,JH3N

B,JH5N

D,JH7N

E,JH9N

F,JH11N

G,JH13N

铸铁 Cast iron

50

68

110

150

180

200

铸钢 Cast steel

50

70

120

150

190

220




工作原理说明:


在设备刚启动时,低温冷凝水和空气同时进入阀腔,这时开启自动排空装置将空气排除,使低温凝结水顺利进入阀腔,阀腔内的凝结水的液位随即上升,使浮球升高,开启阀孔,将凝结水迅速排出 ; 前面的蒸汽很快进入加热设备,使设备迅速加热升温,当蒸汽或较高温度的凝结水进入阀腔时,自动排空装置开始膨胀,关闭自动排空气装置,疏水阀开始正常工作。这时阀腔内的浮球随凝结水液位的高低而升降,能连续的排放凝结水。由于自由浮球式疏水阀的阀座孔总处于凝结水液位以下,形成水封,水汽自然分离,工作时达到无蒸汽泄漏。该阀的最小工作压力为0.01Mpa,从0.01Mpa至最高工作压力范围内不受温度和工作压力波动的影响,能连续工作,其最小过冷度约为0℃,由于该阀能自动、连续地排除凝结水,加热设备内不会有水积聚,能使加热设备达到理想换热效率。是生产工艺加热设备的理想疏水阀之一。

Description of work principle

When the equipment is just started, the low-temperature condensate and air enter the valve cavity at the same time. At this time, open the automatic evacuation device to remove the air, so that the low-temperature condensate can enter the valve cavity smoothly. The liquid level of the condensate in the valve cavity will rise immediately, so that the floating ball will rise. Open the valve hole, so that the condensate can be discharged quickly. The steam in front of the equipment will enter the heating equipment quickly, so that the equipment can be heated quickly and heated up. When the steam or the temperature is lower than When the high temperature condensed water enters the valve chamber, the automatic emptying device starts to expand, the automatic air exhausting device is closed, and the drain valve starts to work normally. At this time, the floating ball in the valve chamber will rise and fall with the level of condensate, which can discharge condensate continuously. Because the valve seat hole of the free floating ball type drain valve is always below the condensate level, forming a water seal, the water vapor is naturally separated, and there is no steam leakage during operation. The minimum working pressure of the valve is 0.01Mpa, from 0.01Mpa to the maximum working pressure range, it is not affected by the fluctuation of temperature and working pressure, and can work continuously. Its minimum supercooling degree is about 0 ℃. Because the valve can automatically and continuously remove the condensate, there is no water accumulation in the heating equipment, which can make the heating equipment achieve the ideal heat exchange efficiency. It is one of the ideal drain valves for heating equipment of production process.

自由浮球式疏水阀 FREE-BALL FLOAT TRAP

技术参数/Technique parameter

壳体压力等级

Shell

 pressure grade

负荷泄漏率

Load

 leakage rate

使用介质

Used

medium

壳体材质

Shell

 material

允许背压率

Permitted

 Backpressure

 rate

最大工作压差

Maximum

Operating

 pressure

differential

1.6

2.5

4.0

6.4MPA

≈0%

蒸汽、凝结水

Steam

Condensate

 water

碳钢/

304

/316

Carbon

 steel

≥80%

4.0MPA

节能效果

Energy

 saving

effect

最小过冷度

Minimum

subcooled

temperature

排水方式

Drainage method

最高允许温度

Maximum

 allowable

temperature

排空气装置

Air exhaust

system

压力变化范围

Pressure

 change

 range

优秀

Excellence

0℃

连续方式

Continue

 mode

420℃

自动

Automatic

适应

Adaption

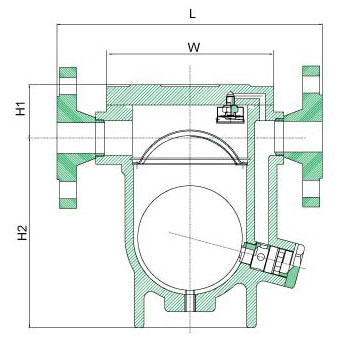

外型尺寸和重量/Prime out-form dimensions and weigh

产品型号

Product

model

口径(DN)

Calibre

L法兰

Flange

L螺纹/

焊接

Thread/

welding

H1

H2

W

重量

Weight

使用压力

范围

(Mpa)

Pressure

 Change

 range

公称

压力

(Mpa)

Nominal

pressure

J11NF

50~65

80~100

430

460

-

120

300

306

63

65

0.1-1.2

1.6

JH11NF

50~65

80~100

430

460

-

115

306

310

85

90

0.1-3.2

2.5-4.0

JH11N40F

50~65

80~125

430

460

-

115

306

310

93

95

0.1-5.0

6.4

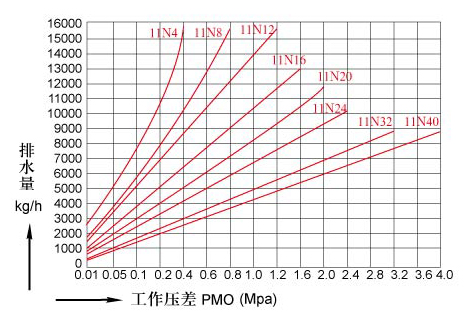

排水量/Capacity


注解:
1、选型时请提供工作压力、工作压差、凝结水发生量、工作温度、连接方式及标准。
2、凝结水负荷的安全系数一般为2~3倍。
3、正确安装、定期保养清除阀内污物,保证疏水阀正常工作和延长使用寿命。
4、装有自动排气阀的疏水阀,其凝结水量能够额外增加300Kg/h。
Note
1. Please provide operating pressure and operating pressure difference, generating quantity of condensation water, operating temperature, connecting mode and standards in selecting product models.
2.The load of condensation water’s safety coefficient reaches 2 to 3 times in general.
3. Please make sure the drain valve is installed properly, maintained regularly, cleaned up and operates under the normal condition, so as to extend its service life.
4.The steam trap, if equipped with automatic exhaust valve, can have the quantity of condensate water increased by 300Kg/h.
