先导活塞倒吊桶式疏水阀-ER85

产品介绍:

    倒吊桶式蒸汽疏水阀它是利用冷凝水和蒸汽的密度差的工作原理,内部结构是由杠杆系统连接倒吊桶,克服蒸汽压力开关倒吊桶式疏水阀内部是一个倒吊桶为液位敏感件,倒吊桶开口向下。装置刚起动时,管道内出现空气和低温冷凝水,此时疏水阀是全开放,空气和低温冷凝水迅速排出,装置很快提升温度。当蒸汽进入倒吊桶内,倒吊桶产生向上浮力,倒吊桶连接杠杆带动阀心关闭阀门。倒吊桶上开有一小孔,能自动排空气,当一部份蒸汽从小孔排出,另一部份蒸汽产生凝结水,倒吊桶失去浮力向下沉,倒吊桶连接杠杆带动阀心开启阀门。当蒸汽再进入倒吊桶内,阀门再关闭,循
环工作,间断排水
    倒吊桶式蒸汽疏水阀是机械型蒸汽疏水阀中坚固的疏水阀之一,它的优点是:不怕水击,能连续排不冷凝气体,抗污性能好;最高背压≥90%,所有内件都是不锈钢制造,耐磨损、抗腐蚀;球形阀心和阀座是线接触,密封性能好,使用寿命长;间断排水和连续排水,能排接近饱和温度冷凝水,使加热设备达到理想工作效率。倒吊桶式蒸汽疏水阀的阀座处于水密封的保护下,工作时无活蒸汽泄漏,节能效果好。
    它适用于石油、化工、印刷、造纸、制药等工业蒸汽加热设备和蒸汽管网的阻汽排水。


Inverted Bucket Trap

    The interior of the inverted bucket steam trap:this valve adopts the operating principles of density difference between condensate water and steam,and the leverage system connects with inverted bucket to form its internal structure,thus controlling the open and close of the steam pressure.The interior of the inverted bucket steam trap is an inverted bucket,a liquid level sensitive part,with the bucket's opening downward.When the device just started,air and low temperature condensate water occur in the pipes,at the moment the steam trap opens thoroughly,the air and low-temperature condensate water are discharged rapidly and the temperature of the device rises immediately.When any steam enters into the inverted bucket,the bucket will obtain buoyancy and the fixed lever of the bucket drives the valve core to close the valve.There is small aperture on the inverted bucket,which can discharge air automatically.As some of steam is discharged from such aperture,while other steam produces condensate water.The inverted bucket loses the buoyancy and sinks down and its fixed lever drives the valve core to open the valve.When the steam re-enters into the bucket,the valve will close again.It repeats the said procedures to discharge water intermittently.
    The inverted bucket steam trap is one of the most solid mechanical steam traps. It has the following advantages: it is not afraid of water hammer, can continuously discharge non condensing gas, and has good anti pollution performance; the maximum back pressure is ≥ 90%, all internal parts are made of stainless steel, wear-resistant and anti-corrosion; the ball valve core and valve seat are in line contact, with good sealing performance and long service life; intermittent drainage and continuous drainage It can discharge condensate close to saturation temperature and make heating equipment reach ideal working efficiency. The valve seat of inverted bucket steam trap is under the protection of water seal, and there is no live steam leakage during operation, so the effect of energy saving is good.
    The product applies to such industrial steam heating equipment as petroleum,chemical,printing,paper making and pharmaceuticals and discharge of the steam pipe network.


优点:

1、对凝结水的发生量适应性强,既可间歇排放,又可连续排放。

2、内部装有大排量的双阀座差压机和SCCV关闭系统,体积小而排量大。

3、内部零件全部采用不锈钢制造,并且安装在阀盖上维修保养极为方便。

4、背压率高(90%)。

5、汽水分离可靠(水汽经U型通道从阀下部进入),阀内始终处于水封状态,有效阻止蒸汽泄露。

6、敞口型的浮子抗水击,吊桶上设有排水孔,可有效防止蒸汽气锁、空气气堵现象(非凝结性的高温空气也排除)。

7、与杠杆机构结合制造高压阀。

Merits

1.Strong adaptability to happening of condensate water,capable of intermittent or continuous discharge.

2.Equipped with double-valve pressure differentiator and SCCV shutdown system,with small size but large discharge capacity.

3.All inner parts made of stainless steel and mounted on valve covers,easy to maintain and repair.

4.High backpressure rate of 90%.

5.Reliable separation of vapor and water (vapor enters from the lower part of the valve through the U-shape passage),the inner part of the valve is in water seal state,which effectively prevents the leakage of steam.

6.Water-resistant open floater with gas vent through the bucket's vent,effective to prevent steam locking or air blocking(except the non-confensed high-temperature air).

7.Suitable to be joined with lever mechanism for producing high-pressure valve.

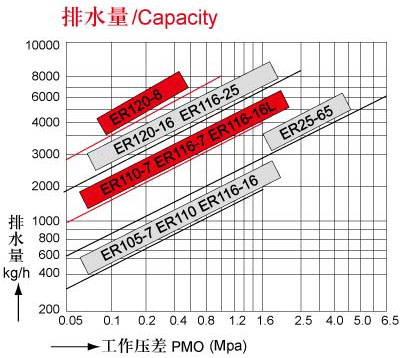

先导活塞倒吊桶式疏水阀/PISTON INVERTED BUCKET TRAP

技术参数/Technique parameter

壳体压力等级

Shell

pressure

grade

负荷泄漏率

Load

 leakage

使用介质

Used

 medium

允许背压率

Permitted

 backpressure

rate

节能效果

Energy

Saving

 effect

排空气装置

Air

exhaust

system

2.5、

4.0、

6.4、

12MPA

≈0%

蒸汽、

凝结水

Steam、

Condensate

water

≥90%

优秀

Excellence

自动

Automatic

最大工作压差

Maximum

 Operating

 Pressure

 differential



排出高温气体

Discharging

of high-

Temperature

 air

排水方式

Drainage

 method

最高允许温度

Maximum

allowable

temperature

抗水击

Resis

12MPA

适应

 Adaption

间接方式

Indirect way

420℃

适应

Adaption


主要零件材料/The materials of primary accessories

  零部件名称

Part and component name

材质

Material

阀体、阀盖

Valve body、Valve cover

铸钢、不锈钢、合金钢

Cast-iron、WCB、Stainless steel

吊桶、杠杆

Inverted bucket、Lever

304/316不锈钢

304/316 Stainless steel

阀座、阀瓣

Valve seat、Valve clack

STL合金、高铬不锈钢

STLAlloy、High chrome、stainless steel

过滤网

Filtrating screen

不锈钢

Stainless steel



外形尺寸和重量/Prime out-form dimensions and weigh

产品型号

Product

model

口径(DN)

Calibre

L法兰

Flange

L螺纹/

焊接

Thread/

welding

H1

H2

W

重量(kg)

weight

使用压力

范围(MPa)

Pressure

change

 range

公称压力

(MPa)

Nominal

pressure

ER85

25

32-80

370

380

260

153

240

240

46

0.1-2.5·3.2

2.5-4.0


注解:

1、选型时请提供工作压力、工作压差、凝结水发生量、工作温度、连接方式及标准。

2、凝结水负荷的安全系数一般为2~3倍

3、正确安装、定期保养清除阀内污物,保证疏水阀正常工作和延长使用寿命。

4、型号尾数数值相同,其排水量也相同。

Note

1.Please provide operating pressure and operating pressure difference,generating quantity of condensate water,operating temperature,connecting mode and standards in selecting product models.

2.The load of condensate water’s safety coefficient reaches 2 to 3 times in general.

3.Please make sure the drain valve is installed properly,maintained regularly,cleaned up and operates under the normal condition,so as to extend its service life.

4.The products with same mantissa figure at their models have the same discharge capacity.
