产品介绍：
环工作，间断排水
倒吊桶式蒸汽疏水阀是机械型蒸汽疏水阀中坚固的疏水阀之一，它的优点是：不怕水击，能连续排不冷凝气体，抗污性能好；最高背压≥90%，所有内件都是不锈钢制造，耐磨损、抗腐蚀；球形阀心和阀座是线接触，密封性能好，使用寿命长；间断排水和连续排水，能排接近饱和温度冷凝水，使加热设备达到理想工作效率。倒吊桶式蒸汽疏水阀的阀座处于水密封的保护下，工作时无活蒸汽泄漏，节能效果好。
它适用于石油、化工、印刷、造纸、制药等工业蒸汽加热设备和蒸汽管网的阻汽排水。
Inverted Bucket Trap
The interior of the inverted bucket steam trap:this valve adopts the operating principles of density difference between condensate water and steam,and the leverage system connects with inverted bucket to form its internal structure,thus controlling the open and close of the steam pressure.The interior of the inverted bucket steam trap is an inverted bucket,a liquid level sensitive part,with the bucket's opening downward.When the device just started,air and low temperature condensate water occur in the pipes,at the moment the steam trap opens thoroughly,the air and low-temperature condensate water are discharged rapidly and the temperature of the device rises immediately.When any steam enters into the inverted bucket,the bucket will obtain buoyancy and the fixed lever of the bucket drives the valve core to close the valve.There is small aperture on the inverted bucket,which can discharge air automatically.As some of steam is discharged from such aperture,while other steam produces condensate water.The inverted bucket loses the buoyancy and sinks down and its fixed lever drives the valve core to open the valve.When the steam re-enters into the bucket,the valve will close again.It repeats the said procedures to discharge water intermittently.The inverted bucket steam trap is one of the most solid mechanical steam traps. It has the following advantages: it is not afraid of water hammer, can continuously discharge non condensing gas, and has good anti pollution performance; the maximum back pressure is ≥ 90%, all internal parts are made of stainless steel, wear-resistant and anti-corrosion; the ball valve core and valve seat are in line contact, with good sealing performance and long service life; intermittent drainage and continuous drainage It can discharge condensate close to saturation temperature and make heating equipment reach ideal working efficiency. The valve seat of inverted bucket steam trap is under the protection of water seal, and there is no live steam leakage during operation, so the effect of energy saving is good.
The product applies to such industrial steam heating equipment as petroleum,chemical,printing,paper making and pharmaceuticals and discharge of the steam pipe network.
优点：
1、对凝结水的发生量适应性强，既可间歇排放，又可连续排放。
2、内部装有大排量的双阀座差压机和SCCV关闭系统，体积小而排量大。
3、内部零件全部采用不锈钢制造，并且安装在阀盖上维修保养极为方便。
4、背压率高（90%）。
5、汽水分离可靠（水汽经U型通道从阀下部进入），阀内始终处于水封状态，有效阻止蒸汽泄露。
6、敞口型的浮子抗水击，吊桶上设有排水孔，可有效防止蒸汽气锁、空气气堵现象（非凝结性的高温空气也排除）。7、与杠杆机构结合制造高压阀。
Merits
1.Strong adaptability to happening of condensate water,capable of intermittent or continuous discharge.
2.Equipped with double-valve pressure differentiator and SCCV shutdown system,with small size but large discharge capacity.
3.All inner parts made of stainless steel and mounted on valve covers,easy to maintain and repair.
4.High backpressure rate of 90%.
5.Reliable separation of vapor and water (vapor enters from the lower part of the valve through the U-shape passage),the inner part of the valve is in water seal state,which effectively prevents the leakage of steam.
6.Water-resistant open floater with gas vent through the bucket's vent,effective to prevent steam locking or air blocking(except the non-confensed high-temperature air).
7.Suitable to be joined with lever mechanism for producing high-pressure valve.
先导活塞倒吊桶式疏水阀/PISTON INVERTED BUCKET TRAP
技术参数/Technique parameter
|
壳体压力等级 Shell pressure grade |
负荷泄漏率 Load leakage |
使用介质 Used medium |
允许背压率 Permitted backpressure rate |
节能效果 Energy saving effect |
排空气装置 Air exhaust system |
|
2.5、 4.0、 6.4、 12MPA |
≈0% |
蒸汽、 凝结水 Steam、 Condensate water |
≥90% |
优秀 Excellence |
自动 Automatic |
|
最大工作压差 Maximum operating pressure differential
|
排出高温气体 Discharging of high- temperature air |
排水方式 Drainage method |
最高允许温度 Maximum allowable temperature |
抗水击 Resis |
|
|
12MPA |
适应 Adaption |
间接方式 Indirect way |
420℃ |
适应 Adaption |
|
主要零件材料/The materials of primary accessories
零部件名称
Part and component name
材质
Material
阀体、阀盖
Valve body、Valve cover
铸钢、不锈钢、合金钢
Cast-iron、WCB、Stainless steel
吊桶、杠杆
Inverted bucket、Lever
304/316不锈钢
304/316 Stainless steel
阀座、阀瓣
Valve seat、Valve clack
STL合金、高铬不锈钢
STLAlloy、High chrome、stainless steel
过滤网
Filtrating screen
不锈钢
Stainless steel

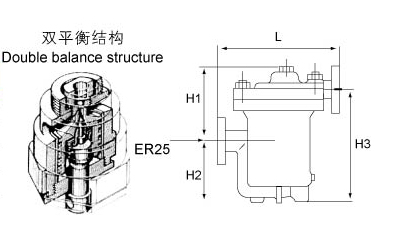

外形尺寸和重量/Prime out-form dimensions and weigh
|
产品型号 Product model |
口径(DN) Calibre |
L法兰 Flange |
L螺纹/ 焊接 Thread/ welding |
H1 |
H2 |
W |
重量(kg) weight |
使用压力 范围(MPa) Pressure change range |
公称压力 (MPa) Nominal pressure |
|
ER25(W) |
15-25 32-50 |
380 380 |
340 380 |
210 210 |
180 180 |
345 345 |
45 47 |
0.1-4.5·6.5 |
6.4-100 |
注解：
1、选型时请提供工作压力、工作压差、凝结水发生量、工作温度、连接方式及标准。
2、凝结水负荷的安全系数一般为2~3倍
3、正确安装、定期保养清除阀内污物，保证疏水阀正常工作和延长使用寿命。
4、型号尾数数值相同，其排水量也相同。
Note
1.Please provide operating pressure and operating pressure difference,generating quantity of condensate water,operating temperature,connecting mode and standards in selecting product models.
2.The load of condensate water’s safety coefficient reaches 2 to 3 times in general.
3.Please make sure the drain valve is installed properly,maintained regularly,cleaned up and operates under the normal condition,so as to extend its service life.
4.The products with same mantissa figure at their models have the same discharge capacity.
