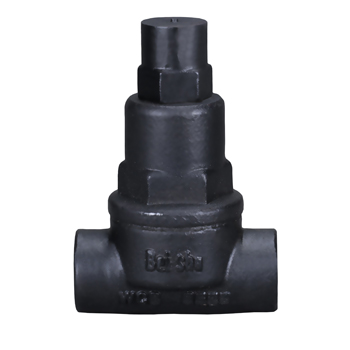

可调双金属片式疏水阀-TB11

产品介绍:

    双金属片式疏水阀的热敏元件为两种不同膨胀率的金属通过特殊工艺压铸一起的双金属片,双层金属片在受热后膨胀,由于不同的膨胀率使其产生的弯曲。利用这种特性制作成疏水阀的热敏元件起到开关作用。双金属片式疏水阀分为不可在线调节(BK,CS17H和CS47)和可在线调节(可调双金属片式TB)。
    Bimetallic Trap
The thermo-sensitive element of bimetallic trap is a bimetallic element cast through a special process by two metals of different expansion ratio.When the bimetallic element expands after heated,different expansion ratio results in bending.The thermo-sensitive element produced on the basis of this quality can act as a switch.Bimetallic Traps are divided into adjustable offline (BK,CS17H and CS47) and online (adjustable bimetallic element TB).
优点:
1、排放温度可在线调整,安装姿势自由。
2、利用高温凝结水形成水封,有效减少蒸汽泄露。
3、动作灵敏,抗水击,无噪声,排空性能优良。
4、结构简单,容易维修保养。
5、用于蒸汽主管、分汽缸、蒸汽伴热管线、散热器、低温加热槽、夹层锅等。
6、可以使用高压高温的蒸汽管线、分汽缸。
Merits
1.Discharge temperature adjustable online by free installation posture.
2.High-temperature condensate water used to form water seal so as to effectively reduce steam leakage.
3.Flexible and noiseless,water hammer resistant,and good emptying performance.
4.Simple structure,easy to maintain and repair.
5.Adoptable for steam main pipes,gas distribution cylinders,steam tracing pipes,radiators,low-temperature heating trough,double layered pots and so on.
6.Adoptable for high-temperature steam pipes,gas distribution cylinders and so on.
性能
可调整凝结水的排放温度,有效利用凝结水的显热。
阀前始终有凝结水,形成水封,无蒸汽泄漏。
可任意角度安装,并随时可调整排水温度。
合金球面阀芯与不锈钢阀座耐冲蚀,使用寿命长。
Performance
Capable of adjusting the discharge temperature of condensate water so as to make effective use of its sensible heat.
Existing condensate water in front of the valve to form water seal to prevent steam leakage.
Capable of installation in any direction and water discharge temperature adjustable at any time.
Long durability thanks to washing and corrosion resistant alloy sphere valve core and stainless valve seat.

可调双金属片式疏水阀/BIMETALLIC TRAP WITH ADJUSTABLE TEMPERATURE


技术参数/Technique parameter

壳体压力等级

Shell

pressure

grade

负荷泄漏率

Load

leakage

使用介质

Used

medium

允许背压率

Permitted

backpressure

 rate

节能效果

Energy

saving

effect

适用过热蒸汽

Use

superheated

steam

1.6、

2.5、

4.0、

6.4、

10MPA

0%

蒸汽、凝结水

Steam、

Condensate

water

≥75%

优秀

Excellence

适应

Adaption

最大工作压差

Maximum

operating

pressure

differential

抗冻性

Freezing

resistance



最高允许温度

Maximum

allowable

temperature





排空气装置

Air

exhaust

system

抗水击

Resis

10.0MPA

优秀

 Excellence

420℃

自动

 Automatic

适应

 Adaption

主要零件材料/The materials of primary accessories

  零部件名称

Part and component name

材质

Material

阀体、阀盖

Valve body、Valve cover

锻钢、不锈钢

Forged steel、Stainless steel

双金属片

Bimetal

不锈钢金属

Stainless steel

阀座、阀瓣

Valve seat、Valve clack

STL合金钢、高铬不锈钢

STL alloy、High chrome stainless steel

过滤网

Filtrating screen

不锈钢

Stainless steel



外形尺寸和重量/Prime out-form dimensions and weigh

产品型号

Product

model

口径(DN)

Calibre

L法兰

Flange

L螺纹/

焊接

Thread/

welding

H1

H2

W

重量(kg)

weight

使用压力

范围(MPa)

Pressure

Change

 range

公称压力

(MPa)

Nominal

pressure

TB11

TB11W

15~20

25

-

90

95

112

23

26

62

1.5

0.1-1.6

2.5

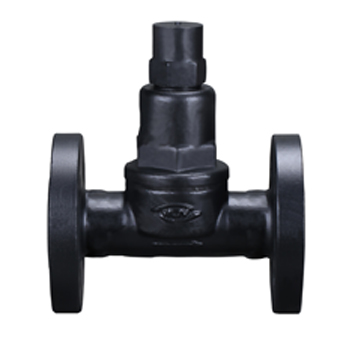

TB11F

15~20

25

32~50

150

160

230

-

112

112

160

23

26

75

62

62

120

3.2

3.5

13

0.1-1.6

2.5

TB11F

(自制体)

15~50

32~50

230

200

-











CL300

-

TB11F

(DN25体)

32~40

170

-











注解

1、选型时请提供工作压力、工作压差、凝结水发生量、工作温度、连接方式及标准。
2、凝结水负荷的安全系数一般为2~3倍。
3、正确安装、定期保养清除阀内污物,保证疏水阀正常工作和延长使用寿命。
4、TB3与TB5相同,TB6与TB11相同.
Note
1.Please provide operating pressure and operating pressure difference,generating quantity of condensate water,operating temperature,connecting mode and standards in selecting product models.
2.The load of condensate Water's safety coefficient reaches 2 to 3 times in general.
3.Please make sure the drain valve is installed properly,maintained regularly,cleaned up and operates under the normal condition,so as to extend its service life.
4.TB3 and TB5 same,TB6 and TB11 same.
