产品介绍：
膜盒式蒸汽疏水阀（蒸汽压力平衡式）工作时阀前存有高温凝结水，无蒸汽泄漏，节能效果显著。
膜盒式在现如今蒸汽管线中是代替低压（压力在PN25以下）热动力（圆盘式）疏水阀或（压力在PN16以下）双金属片式疏水阀的理想替代品。

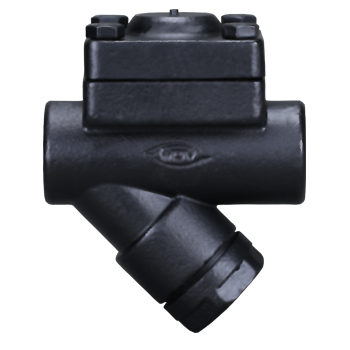

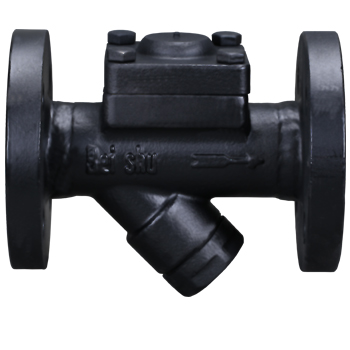

Bellows Trap
The main acting unit of bellows,which is filled with a ytpe of liquid with gasification temperature lower than water's saturation temperature.When the device just starts,there appears condensate with low temperature in conduits and the liquid in the bellows is in the condensed state.The trap is turned on.When the temperature of condensate water gradually goes up,the liquid in the bellows begins to vaporize and the pressure within it increases.Consequently,the film drives the valve core to move towards the closing direction.Before the condensate water reaches its saturation temperature,the trap is completely shut down.The bellows controls the opening and closing of valves in accordance with steam temperature changes so as to resist steam and discharge water.Available are two alternative bellows with opening temperature 15℃ or 30℃ lower than saturation temperature.
There is high temperature condensate in front of the Bellows Trap (steam pressure balance type) when it works, and there is no steam leakage, so the energy saving effect is significant.
Bellows trap,among all existing steam pipes,are presently the ideal substitute of low-pressure (with pressure below PN25)hot motive (disc)traps or bimetallic elements traps (with pressure below PN16).
优点：1、动作速度快，零泄漏。
2、结构简单，维护方便。
3、部件全部采用合金处理的不锈钢，耐磨，耐气蚀，使用寿命长。
4、排空能力强，排水迅速，安装方式随意。
5、可以实现多个膜盒组合，适用于大的排量场合。
6、具有良好的排空气性能，不怕冻，零泄漏，背压率达到75%。
1.Quick acting speed and zero leakage.
2.Simple structure and convenient maintenance.
3.All components made of alloy-treated stainless steel,resistant to wearing,gas corrosion,long durability.
4.Good emptying capability with quick discharge and easy installation.
5.Capable of combination of multiple bellows,suitable for large discharge.
6.Good air discharge capability,with coldness resistance,zero leakage and backpressure of 75%.
膜盒式疏水阀/BELLOWS TRAP
技术参数/Technique parameter
|
壳体压力等级 Shell pressure grade |
负荷泄漏率 Load leakage |
使用介质 Used medium |
允许背压率 Permitted backpressure rate |
节能效果 Energy Saving effect |
最大工作压差 Maximum Operating pressure differential |
|
1.6、 2.5MPA |
0% |
蒸汽、凝结水 Steam、 Condensate water |
75% |
优秀 Excellence |
1.6MPA
|
|
最小过冷度 Minimum Subcooled temperature |
排水方式 Drainage method |
最高允许温度 Maximum allowable temperature |
排空气装置 Air exhaust system |
抗冻性 Freezing resistance |
抗水击 Resis |
|
0℃ |
间接方式 Indirect way |
350℃ |
自动 Automatic |
优秀 Excellence |
适应 Adaption |
主要零件材料/The materials of primary accessories
|
零部件名称 Part and component name |
材质 Material |
|
阀体、阀盖 Valve body、Valve cover |
锻钢、不锈钢 Forged steel、Stainless steel |
|
膜盒 Bellows |
哈氏合金 Hastelloy alloy |
|
阀座 Valve seat |
STL合金 STL Alloy |
|
过滤网 Filtrating screen |
不锈钢 Stainless steel |

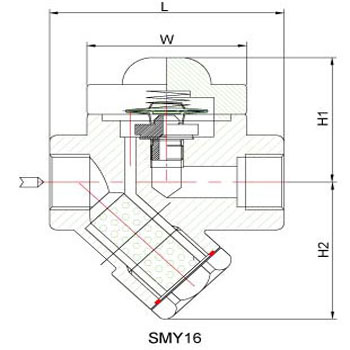

外形尺寸和重量/Prime out-form dimensions and weigh
产品型号
Product
model
口径(DN)
Calibre
L法兰
Flange
L螺纹/
焊接
Thread/
welding
H1
H2
W
重量(kg)
weight
使用压力
范围(MPa)
Pressure
change
range
公称压力
(MPa)
Nominal
pressure
SMY16
SMY46
15~20
25
150
160
100
105
59
65
68
2
5
0.1-1.6
2.5
1、选型时请提供工作压力、工作压差、凝结水发生量、工作温度、连接方式及标准。
2、凝结水负荷的安全系数一般为2～3倍。
3、正确安装、定期保养清除阀内污物，保证疏水阀正常工作和延长使用寿命。
Note
1.Please provide operating pressure and operating pressure difference,generating quantity of condensate water,operating temperature,connecting mode and standards in selecting product models.
2.The load of condensate Water's safety coefficient reaches 2 to 3 times in general.
3.Please make sure the drain valve is installed properly,maintained regularly,cleaned up and operates under the normal condition,so as to extend its service life.
